Circuit Board Recycling Machine

Capacity:

200-1000 Kg/H

Raw Materials:

Computer board, Phone board, TV board, CCL(copper-clad plate), PCB leftover material,etc.

Final Products:

Mixed metal powder, Resin fiber powder

SEND EMAIL: sunymachine@gmail.com

Project Description

Circuit board recycling machine is combined with the domestic and international advanced technology was developed. The equipment adopts the advanced physics law recovery processes; purity and separation rate of equipment is the highest in the all of the waste circuit board recycling equipment.

Circuit board recycling machine can help you get metals, resin powder and fiber powder from used Printed Circuit boards. Such as, waste computer boards, waste cell phone boards, waste TV boards, pcb scrap etc.

Because of the high value of the metals, fiber and resin, there is no doubt that this series plants not only help to change waste to treasure, but also bring great economic benefits.Through years of practice and theoretical analysis, we obtain the best separation result, the separating purity can be reached to 99%.

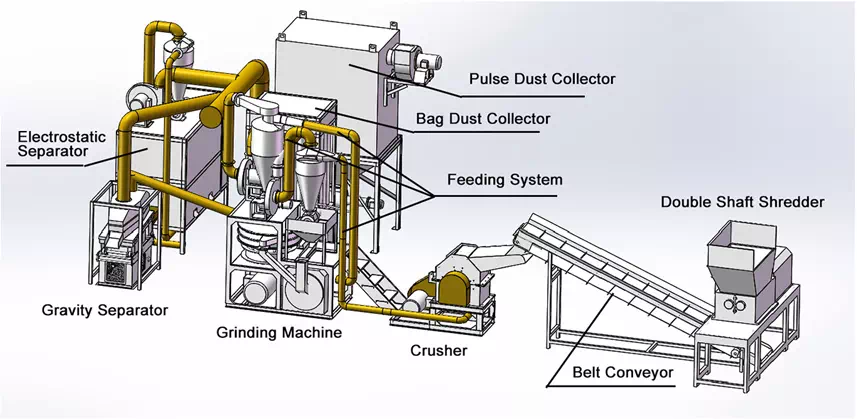

PCB Recycling Machine Structure

First, the circuit will be separated into motherboards and some circuit components .Because of its special characteristic.the boards need the dry-type grinding and separating system .These boards are grinder into mixture power f the metal and resin fiber .Then .the mixture will be separating via air flow system the separating rate can be up to 97%. Finally .the rest mixture are processing via special electrostatic separator .the machine can achieve the 99% separating rate. Apart from that .the mesh also can be collected by the pulse dust collector .which guarantee 99% collecting rate.

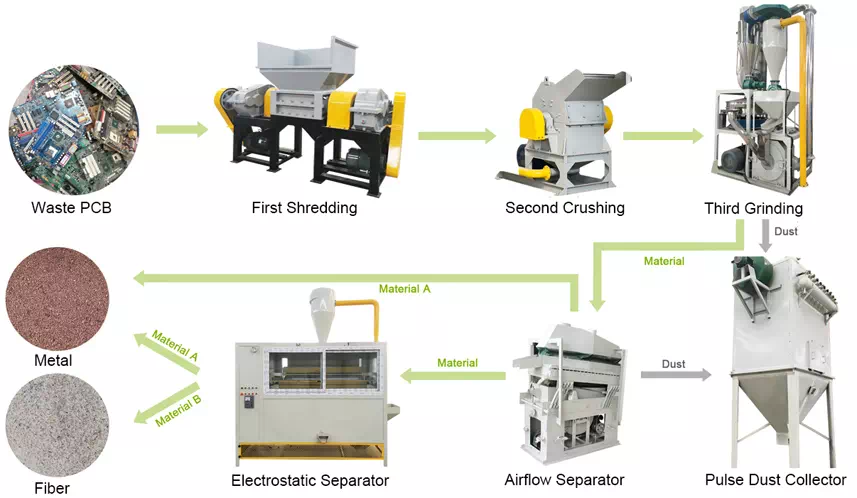

Work process

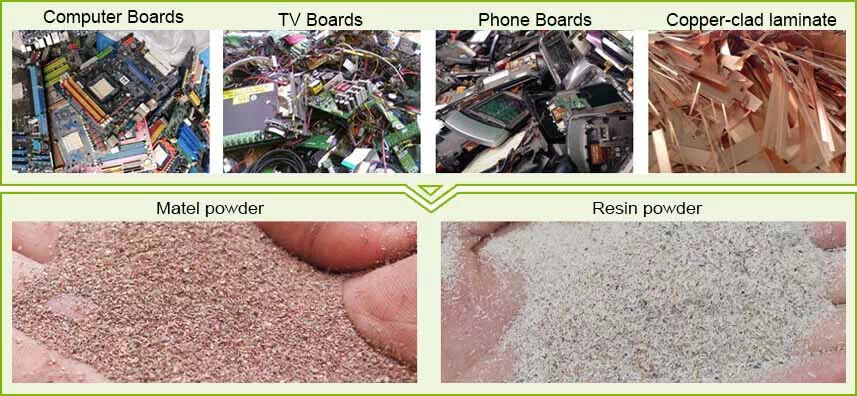

Raw materials that pcb recycling machine can process:

1. Waste printed circuit board with or without electronic components;

2. CCL( copper-clad plate), PCB leftover material;

3. Scrap circuit boards, such as computer board, mobile phone board, TV board, etc.

waste circuit boards mainly comes from all kinds of scrap electric appliances, mainly including green board and yellow board. Green board is dismantled from waste televisions, computers, communications equipment, with high vafue;yellow palte mainly from the tape recorder, audio equipment, washing machines, air conditioning and dismantling, with low value.

PCB Recycling Machine

PCB Recycling Machine

Double shafts shredder host machine using high quality steel welding. And make sure the stability of the machine in the long heavy-duty working. Blade quality have 9CrSi,Cr12Mov, SKD-II, D2 etc. It can be customized according to the customer.

PCB Recycling Machine

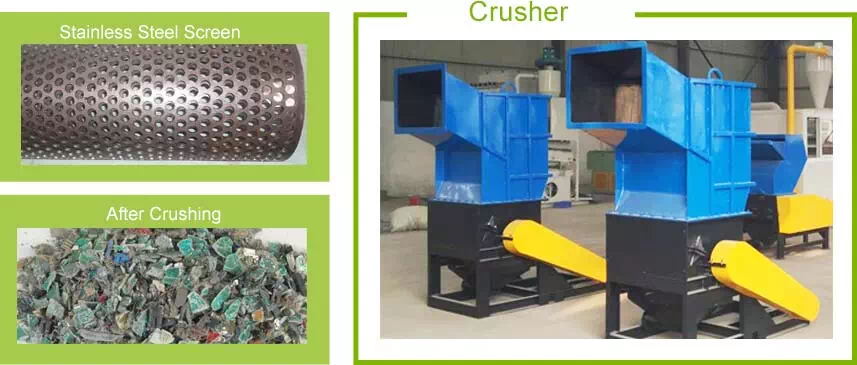

Metal crusher has low noise, non-pollution, high crusher tatio with uniform discharging, it can adjust the feed particue size, stable performance.

PCB Recycling Machine

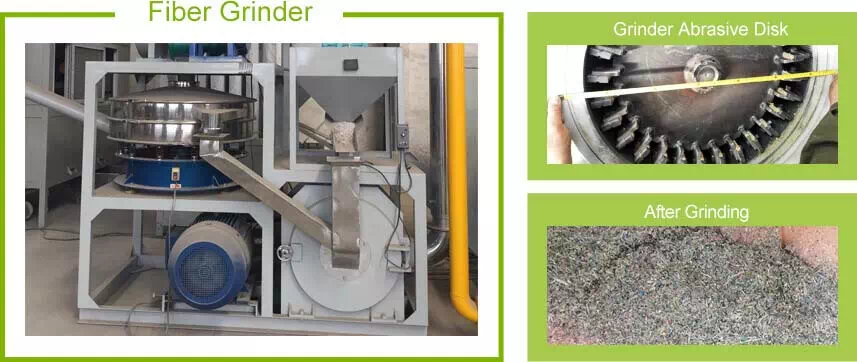

New abrasive disk design, high capacity,good Wear Resistance, the service life is two times longer than the common abrasive disk.

Circular vibrating screen:Large Size Recycle for Second Time Grinding. Feedback system makes the grind much more effective.

The negative pressure feeding system prevent the dust from running out.

PCB Recycling Machine

The material is separated twice by air separator and electrostatic separator, Air separation efficiency is up to 97%. Electrostatic separator can reparate the metal and nonmetal material again by the second roller, to improve the purity of the metals.

PCB Recycling Machine

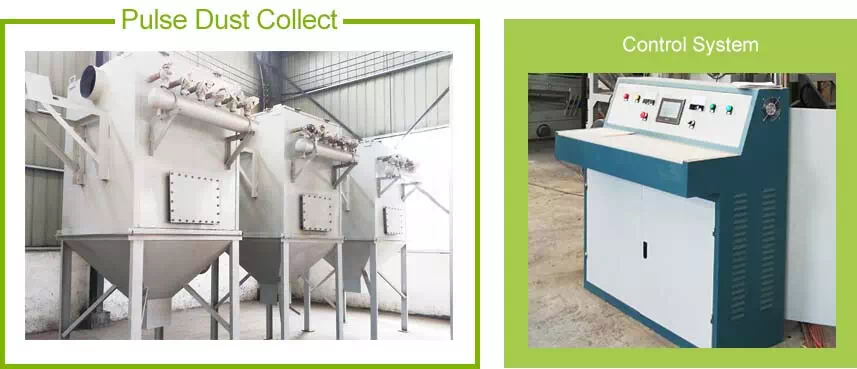

Pulse dust collector and bag dust collector are combined. High efficiency of dust removal; dust particle with a diameter more than 0.3 micrometers can be gathered, and the dust collection efficiency is up to 99%.

PLC control systems provide reliable and efficient control solutions to help improve production efficiency, quality and safety.

I. With compact structure, reasonable layout, stable performance, low noise; Easy to replace wearing parts;

2. Coordinate operation and even feeding with PLC in the whole line;

3. Large capacity to 1000kg/h via 3-stage-crusher; Grinder with water cooling grinding;

4. Air flow separator with the separator rate over 99%; The efficiency of impulse dust collection reached up to 99%; Finer and more efficient separation via high voltage electronic separator; Effectively controlling the loss of non-ferrous metals.

Technical Parameter
Note : Processing capacities are the average value, depending on the capacity, the number of stand-alone units is different, Please inquire according to your needs.
ModelCapacity(Kg/H)Dimensions(mm)Total Power(Kw)Space Needed(㎡)
ZYPCB-300200-30010000*5000*41004550
ZYPCB-500400-50015000*8000*410075120
ZYPCB-800500-80020000*8000*4100120200
ZYPCB-1000800-100020000*15000*4100160300
Inquiry

Thank you for your interest in suny group. If you want to learn more about our products,Contact us now and get information and quotes for free!E-mail:sunymachine@gmail.com | Whatsapp:+8613674945231

Name: *
Country:
Email: *
Phone:
Instant Messenger:
Raw Material:
Capacity:
Message: *
Test and inspection

Before delivery, we all equipment will imitate the real production environment, use the customer need to deal with material test, to ensure the production line performance and production meet customer requirement. We sincerely invite customers came to the scene for final test.
