SUNY GROUP

Waste Tire Recycling Machine

Capacity:

Customized according to requirements

Raw Materials:

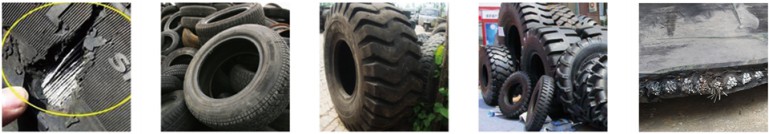

Waste tire

Final Products:

Rubber powder and rubber particles as well as steel wires and fibers.

SEND EMAIL: sunymachine@gmail.com

Project Description

Tire recycling machine can crush waste tires or rubber products into rubber granules and powder to realize the recycling and reusing of waste rubbers. This is the best way to recycle waste tires. As a professional manufacturer, we can provide you the best solution based on your different raw materials.

Application

hrough tire recycling plant, the final products are rubber granule, rubber powder, nylon fiber and steel wire. Rubber powder fineness(mesh)can be processed according to customer needs. Normally we can offer different capacity of waste tire recycling production line from 100 k/h to 3000 k/h; the rubber granule size can be 0-6mm and the rubber powder size can be 5-120 mesh.

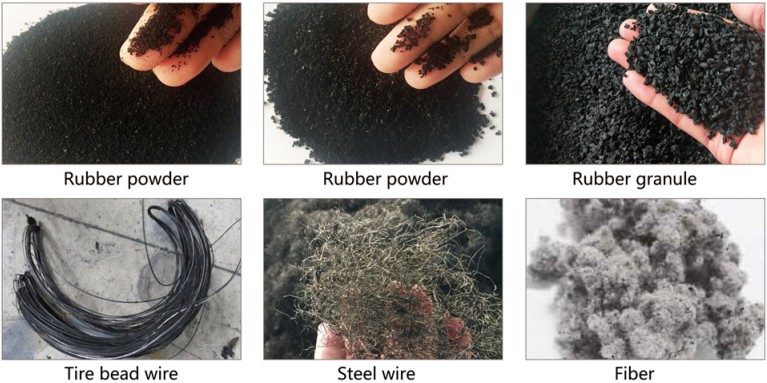

Final Products by Our Equipment

Application

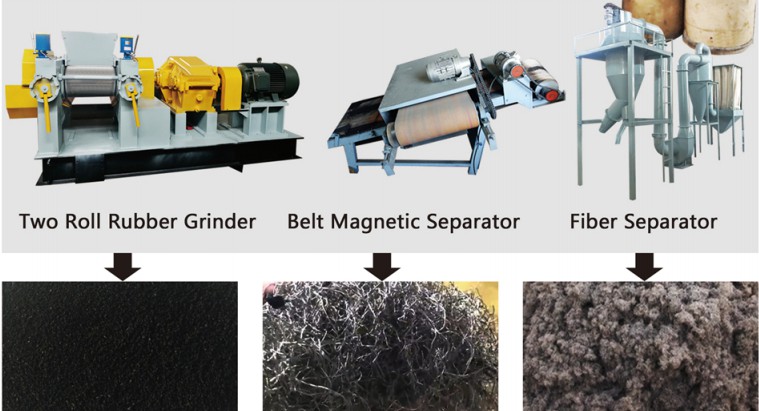

Crush tire blocks(3-8cm)into 1-6mm rubber granules and separate the steel wire and nylon fiber from the rubber granule to get pure finished products. It can produce 0-2mm 3-4mm 5-6mm three differ ent size granules at the same time.

Rubber granule production line

Rubber granule production line

Application

It is especially used to crush tire blocks(3-8cm)into rubber powder and separate steel wire and nylon fiber from rubber powder to get pure finished products.

Rubber powder production line



Technical Parameter
Note : Processing capacities are the average value, depending on the capacity, the number of stand-alone units is different, Please inquire according to your needs.
Mode XKP350 XKP400 XKP450 XKP560 XKP560D
Power(kw) 30 45 55 75 132
Weight(kg) 6300 8500 13000 17500 17500
Roller Diameter Length(mm) 300*500 400*600 450*760 510*800 560*800
Front Roller Linear Speed Ratio(m/min) 26.2 34.5 38.0 38.6 42.5
Roller Speed Ratio 1:2.5 1:2.5 1:2.5 1:2.5 1:2.5
Overall Dimension(mm) 3600*1700*1600 4500*1900*1700 4500*1900*1700 5300*2100*1700 5300*2100*1700
(Rubber Grinder Technical Specifications)
Inquiry

Thank you for your interest in suny group. If you want to learn more about our products,Contact us now and get information and quotes for free!E-mail:sunymachine@gmail.com | Whatsapp:+8613674945231

Name: *
Country:
Email: *
Phone:
Instant Messenger:
Raw Material:
Capacity:
Message: *
Test and inspection

Before delivery, we all equipment will imitate the real production environment, use the customer need to deal with material test, to ensure the production line performance and production meet customer requirement. We sincerely invite customers came to the scene for final test.
