Daily maintenance of scrap wire stripping and recycling machine

2022-11-11 16:07:40

Daily maintenance of scrap wire stripping and recycling machine

1. Start the motor to check whether the operation is normal. When feeding, check the diameter of the outer rubber and plastic cables of each gear, and feed them one by one.

2. In order to make the blade durable for a long time, the connector of the rubber-plastic cable should be cut off when feeding, so as to avoid the blade notch from chipping.

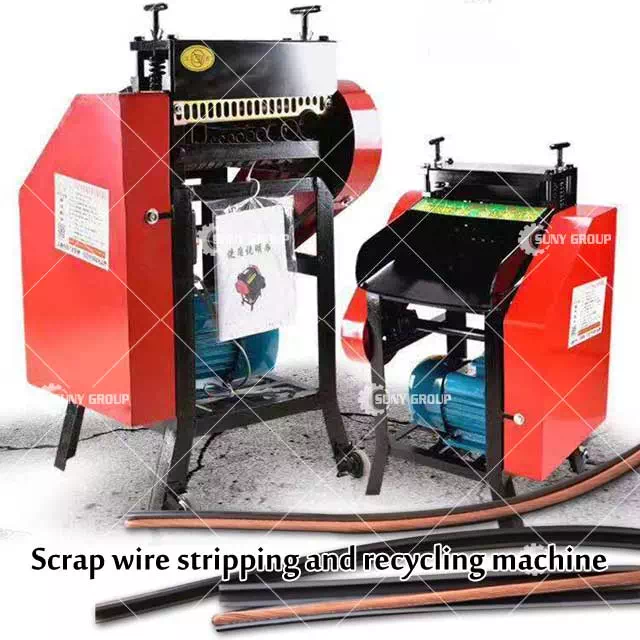

scrap wire stripping and recycling machine

3. If there is too deep and broken wire after feeding out, pay attention to the following points:

① Adjust the feeding gear, that is, the tightness of the screw pressure on both sides of the blade shaft;

② Check whether the position is wrong when feeding;

③ Whether the blade is new or not, and whether the cutting edge is too sharp, it should be slightly trimmed with whetstone until it is moderate.

4. If the rubber and plastic have been peeled off after the feeding, but the copper wire cannot be spit out. There are four main points:

① If the knurling of the upper shaft is too deep, the upper shaft should be ground with a whetstone, but it should not be ground too much. Excessive grinding will easily cause oily cables to be difficult to drive;

② Whether the spring pressure is too loose, the pressure should be adjusted tightly, and it will stop as soon as it can spit;

③ If the diameter of the wire is too small, or the gap between the upper and lower shafts is too large, the gap between the two shafts should be adjusted to 0.4---0.6mm;

④ The processed rubber-plastic cable has been heated, and the copper wire cannot be spit out.

5. If after feeding, the agent pressure gear cannot drive the cable and the material stays in the middle, the following situations will occur:

① Check whether the belt of each gear is loose;

② Check whether the spring pressure on both sides of the pressure gear is too tight, there is no top force, and the pressure should be relaxed;

③ The cable is too oily, causing the two shafts to slip, and the two shafts should be wiped dry frequently (when drying, if the machine is running, please pay attention to safety).
