Automatic machine to remove copper from a motor

In the motor recycling industry, motor stator copper extraction machines are widely used in recycling stations and other related industries to improve the recycling efficiency of scrap motor stator copper. The equipment uses two independently driven axes and can automatically press and feed materials during the production process. Its unique cutter shaft structure and four-corner rotary cutter design effectively avoid the problem of equipment winding or clogging at low speed and high torque, thereby improving production efficiency. This equipment is suitable for processing various high toughness and high viscosity materials, and has the advantages of efficient production, environmental protection and recycling.

The motor stator copper extractor selects the appropriate gear according to the size of the copper to be removed. This waste household appliance motor stator copper extraction machine has the characteristics of saving time, labor and cost by 40%. Only one person is required to operate, producing less dust and low noise.

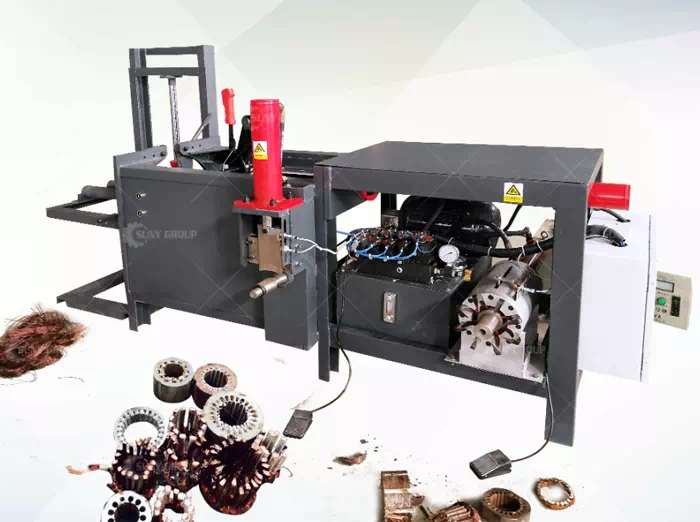

Automatic machine to remove copper from a motor

In addition, the motor disassembly and copper extraction machine is a device that can quickly disassemble the motor coil, especially suitable for the automatic disassembly of the stator insulation of the washing machine motor to the ground. It can achieve 360-degree insulation between the stator winding and the stator core. The motor disassembly and copper extraction machine is used for recycling and dismantling of used motors. It has the advantages of easy use, simple operation, single-person operation, high efficiency and fast speed. The device uses three-phase power and a 4 kW motor. Its working principle is to first cut off the copper wire at one end of the stator, and then pull out the copper wire from the eight claws at the other end of the stator to achieve separation of copper and iron. Complete removal of the stator by pulling out its copper coils.

Users can recycle copper coils and stator cores according to actual conditions. This equipment is suitable for motors of various specifications, with diameters ranging from 6 cm to 50 cm (for example, the stator diameter of a 0.55 kW motor is approximately 6 cm, and the stator diameter of a 90 kW motor is approximately 40 cm). It is suitable for manufacturers and motor dismantling houses that deal with a large number of burned out motors. The equipment's working capacity is equivalent to the manual disassembly of ten workers without causing deformation of the steel plate. The output can reach about 1,000 kilograms within four hours.

In summary, motor stator copper extraction machines and motor disassembly copper extraction machines play an important role in the motor recycling industry. They provide a reliable solution for recycling scrap motor stator copper by improving recycling efficiency and automating the production process. These equipment not only save time and labor costs, but also effectively handle various types of motors, allowing the copper coils and stator cores to be effectively recycled and reused.
