Motor Stator Copper Extraction Machine

In today's resource regeneration, the stator and rotor in waste motors have a high recycling value. Waste motors contain renewable resources such as copper, aluminum, steel, and iron. So how to deal with these motor rotors, stators, and small motors to make money? The motor aluminum shredder can disassemble and extract copper from it, and can directly disassemble and process waste motors to separate copper and iron. Its low copper loss rate is favored by customers.

The new copper drawing machine has less wire waste, high recovery rate, and good economic benefits: cutting copper wires with a cutting machine will not waste copper wires; if cutting copper wires with a cutting machine, a lot of copper wires will be wasted. Today, when copper is more expensive Can save a lot of money. It can adapt to the disassembly of motor stator copper wires of different sizes: motor stators with hydraulic copper shears can cut copper wires: 80-250 frames of various single-phase or three-phase asynchronous motor stators.

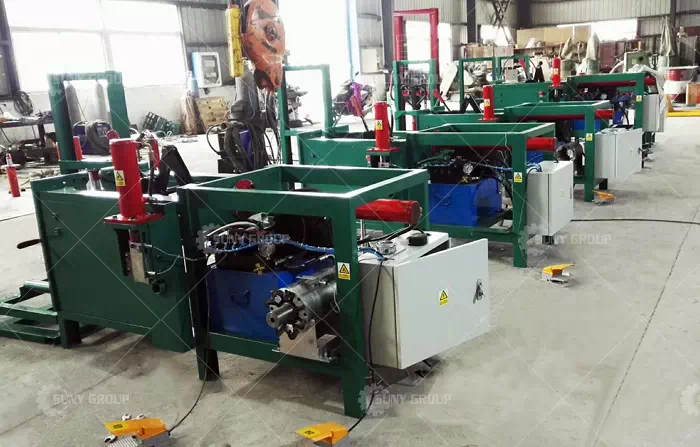

Motor stator copper extraction machine manufacturing workshop

Motor dismantling copper pulling machine quickly disassembles the motor coil equipment, washing machine motor stator insulation and ground automatic disassembly machine: the stator winding and the stator core are insulated 360 degrees. The motor dismantling and copper pulling machine is a motor recycling and dismantling equipment for waste motors. It is easy to use and easy to operate. It can be operated by one person, with high efficiency and fast speed, and can bring benefits. The device uses three-phase power and a 4 kW motor. Its working principle is: first cut off the copper wire at one end of the stator on the cutter, and then pull out the copper wire from the eight claws at the other end of the stator, so as to realize the separation of copper and iron. Pull the copper coil out of the stator to complete the disassembly of the stator.

Users can recycle copper coils and stator cores according to actual conditions. Suitable for motors of different specifications, diameter φ6CM-50cm (0.55 kw motor stator diameter is about 6cm, 90K motor stator diameter is about 40CM). It is suitable for manufacturers who return multi-burning motors and manufacturers who dismantle motors. The working capacity of this equipment is equivalent to the manual disassembly of ten workers. Moreover, the steel plate is not deformed, and the recovery output can reach about 1000kg in four hours.

Production of copper wire drawing machines, motor coil dismantling equipment, washing machine motor stator automatic dismantling machine: 360-degree insulation between the stator winding and the stator core. Phase Insulation: The insulation between the stator windings of each phase. Turn-to-turn insulation: the insulation between the turns of each phase stator winding. After the three-phase winding of the stator is embedded in the slot, a total of six outgoing terminals are introduced into the junction box of the motor base.

The equipment should be operated by one person during operation to avoid misuse. High uniformity. The electric car crusher can crush iron sheets, bicycles, tricycles, car shells, briquettes, color steel tiles, waste household appliances, iron filings, safes, iron railings, etc. Stable operation; safe operation, reliable quality; small vibration, low noise, high efficiency.
