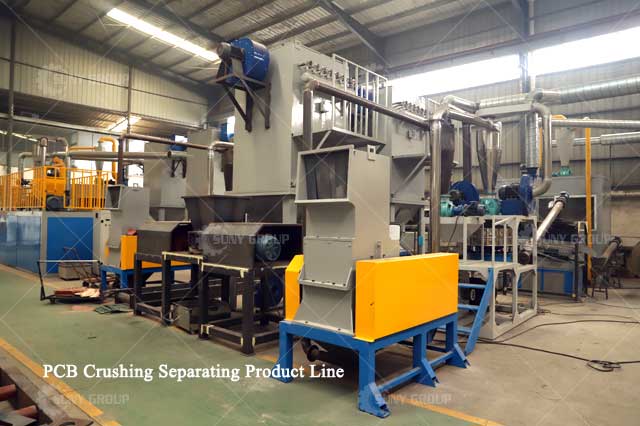

PCB Crushing Separating Product Line

The waste circuit board and waste cable recycling production line has the characteristics of environmental protection, high output, fully automated production, high efficiency and energy saving, improved efficiency and small footprint. Complete mechanical and physical separation, pulse dust collection system is used in the whole process, no dust pollution. The recovery rate of copper metal is particularly high.

1 The production line is mainly divided into five parts, namely coarse crushing, medium crushing, fine crushing, sorting and dust collection. Coarse crushing is to crush the circuit board to a size smaller than ?30mm; medium crushing is to crush the coarsely crushed material to a size smaller than ?10mm; fine crushing is to crush the circuit board particles to a size smaller than ?2.5mm; Internal sorting; dust collection is to collect the dust generated by the entire production line to avoid dust pollution in the workshop.

2. The circuit board of this production line is directly put into operation, and no other processing is required in advance;

3 From the whole circuit board to the sorted copper powder finished product (purity of more than 70%), the production is fully automated without intermediate links such as secondary handling;

4. The medium and fine crushing bodies, bearings, and the fine crushing main shaft are equipped with a water circulation cooling structure to prevent potential safety hazards such as spontaneous combustion during the long-term crushing process, and prolong the service life of the equipment;

5. The fully combined structure makes installation, replacement and maintenance easier and safer;

6. Install a pulse dust collection system to ensure no dust leakage during the production process;

7. Install the waste gas purification tower to purify the odorous gas generated during the crushing process and discharge fresh air.

Electronic waste is known as "urban mine", SUNY GROUP environmental protection provides customers with design and customized waste PCB board environmental protection solutions. Circuit board processing equipment, also known as waste PCB board environmental protection processing production line, is mainly aimed at the PCB industry, the frame material, scrap board, drilling powder produced by circuit board manufacturers in the production process, environmental protection dismantling and disposal of waste generated by enterprises Circuit boards are environmentally friendly and recycled. For equipment technical parameters and details, please consult Lvjie Environmental Protection.
