Solar Photovoltaic Panel Recycling Machine

Photovoltaic module recycling equipment constitutes an automated system designed for processing discarded solar panels. Its primary function is to facilitate the efficient separation and reuse of glass, aluminum frames, silicon wafers, and various metal materials, thereby minimizing resource waste and enhancing the economic value of recovered materials. As such, it serves as a critical piece of foundational infrastructure amidst the growing wave of photovoltaic system decommissioning.

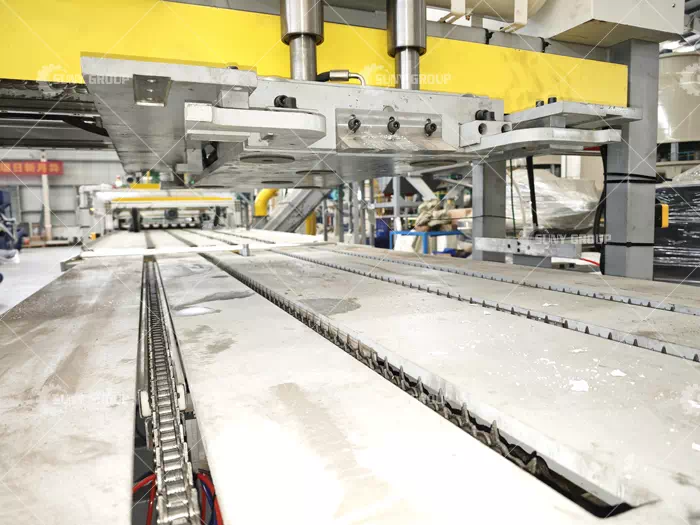

Solar Photovoltaic Panel Recycling Machine

I. Equipment Composition and Process Flow

A complete photovoltaic panel recycling production line typically comprises a feeding and conveying system, an aluminum frame dismantling unit, glass separation equipment, a crushing system, and a sorting system. Discarded photovoltaic panels are first processed—either manually or automatically—to remove the aluminum frames and junction boxes. Subsequently, they undergo a pyrolysis or mechanical stripping stage to separate the EVA encapsulant film from the glass layer. The remaining components are then fed into crushing equipment for size reduction, followed by a multi-stage sorting process—utilizing airflow separation, vibrating screens, or electrostatic separation—to progressively isolate materials such as silicon powder, copper, and silver, thereby achieving the categorized recovery of diverse materials.

II. Core Equipment and Technical Features

Key components include high-efficiency crushers, pyrolysis furnaces (or physical delamination units), and multi-stage sorting systems. The crusher must possess robust shearing and impact capabilities to effectively process the complex composite structures of the panels; the pyrolysis equipment employs controlled thermal treatment to soften or decompose the encapsulant film, thereby boosting separation efficiency; and the sorting system prioritizes precision and stability to ensure the purity of the separated materials. The entire production line is designed for continuous operation and is equipped with a dust removal system to mitigate dust pollution and ensure compliance with environmental protection regulations.

III. Application Value and Scope

This type of equipment is ideally suited for enterprises specializing in the disposal of end-of-life photovoltaic modules, general resource recovery companies, and other entities within the new energy industry chain. As the global installed capacity of photovoltaic systems continues to expand, the volume of decommissioned modules is projected to rise rapidly in the coming years. Recycling equipment not only serves to alleviate environmental pressure but also enables the extraction of economically valuable metals and silicon materials, thereby establishing a sustainable system for resource circulation.
